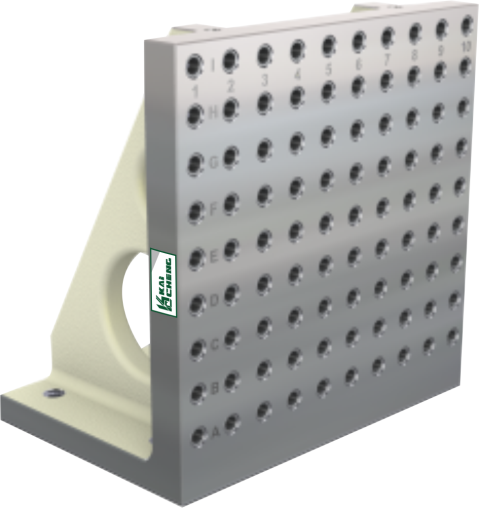

MC ANGLE PLATE HAP02

Material: FCD550

Heat treated: Normalized

Application: Horizontal Machining Center

Features：Ａlignment bushing＆thread insert at every hole lication ,easily adapts to standardized jig components



 （Customization is available）



1.Material: FCD550

2.Heat treated: Normalized

3.Application: Horizontal Machining Center

4.Features:Ａlignment bushing＆thread insert at every hole lication ,easily adapts to standardized jig components

1.THREADED INSERT

2.POSITIONING BUSHING



3.LOCATING KEY



4.LOCATING KEY
