MC TOOLING COLUMN

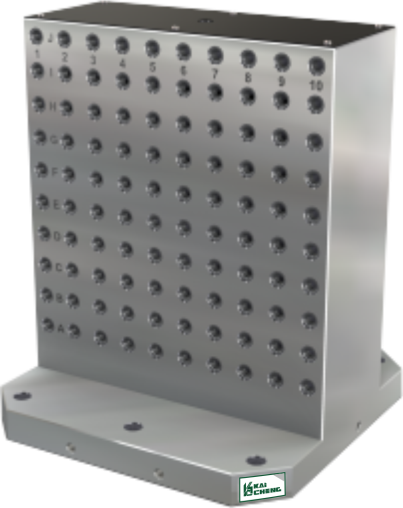

DOUBLE SIDED TOOLING COLUMN DSC02

1.Material: FCD55

2.Heat treated: Normalized

3.Application: Horizontal Machining Center

4.Features: Alignment bushing&thread insert at every hole location ,easily adapts to standardized jig components





(Customization is available)



1.Material: FCD55

2.Heat treated: Normalized

3.Application: Horizontal Machining Center

4.Features: Alignment bushing&thread insert at every hole lication ,easily adapts to standardized jig components





1.THREADED INSERT

2. POSITIONING BUSHING



3.LOCATING KEY



4.LOCATING KEY
