1. Suitable for thin, small and medium workpiece on light duty machining.

2. Suitable for thin, small and medium workpiece of the drilling and finishing machining.

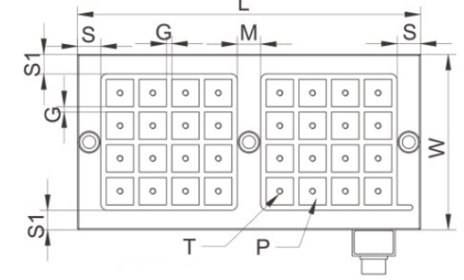

3. Minimum size of workpiece required as 4 alternate magnetic square poles and above contacts is necessary for optimum clamping.

4. More functions for cooperate with Induction Block and Spring Block.

1. INDUCTION BLOCK  : KCPM -A SERIES

2. INTUCTION BlOCK : KCPM-S50T

 3.Spring Block : KCPM-SP

1. Main Applications:

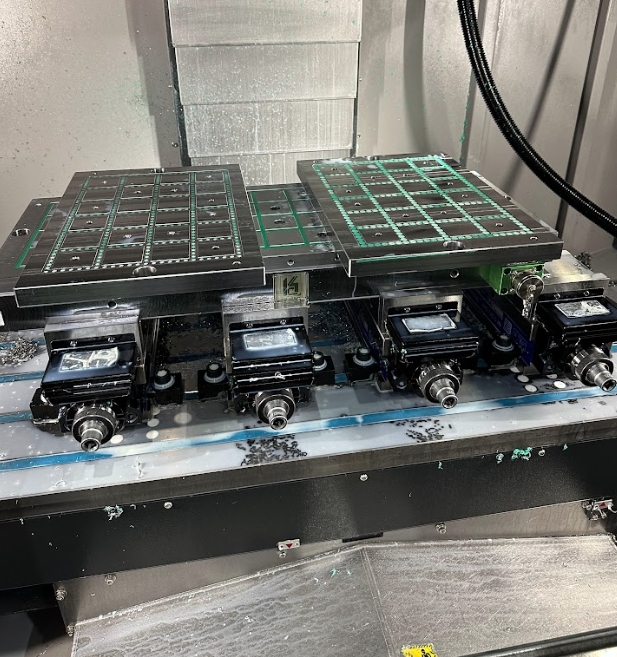

   It is widely used in various machine tools, including grinders, lathes, milling machines, and other metal processing equipment.

   It effectively secures metal workpieces of different shapes and sizes, suitable for flat machining, cutting, grinding, and various other machining processes.

2. Types of Processing It Suits:

   It is suitable for light cutting operations on thin, small, and medium-sized workpieces, such as drilling and finishing operations.

   For workpiece clamping, it requires at least four or more contact areas to ensure stable fixation conditions.

3. Special Applications:

  When used with magnetic soft jaws or spring soft jaws, it can expand its functionality to perform a wider range of workpiece clamping operations.
